FCC Rear View Camera Link Interface Bmw Video Dynamic Active Parking Guidelines

Dynamic Active Parking Guidelines Rear View Camera Interface Car Video Interface

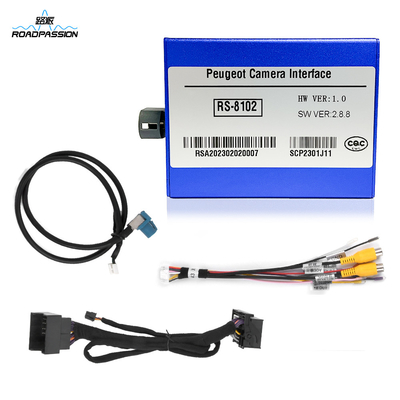

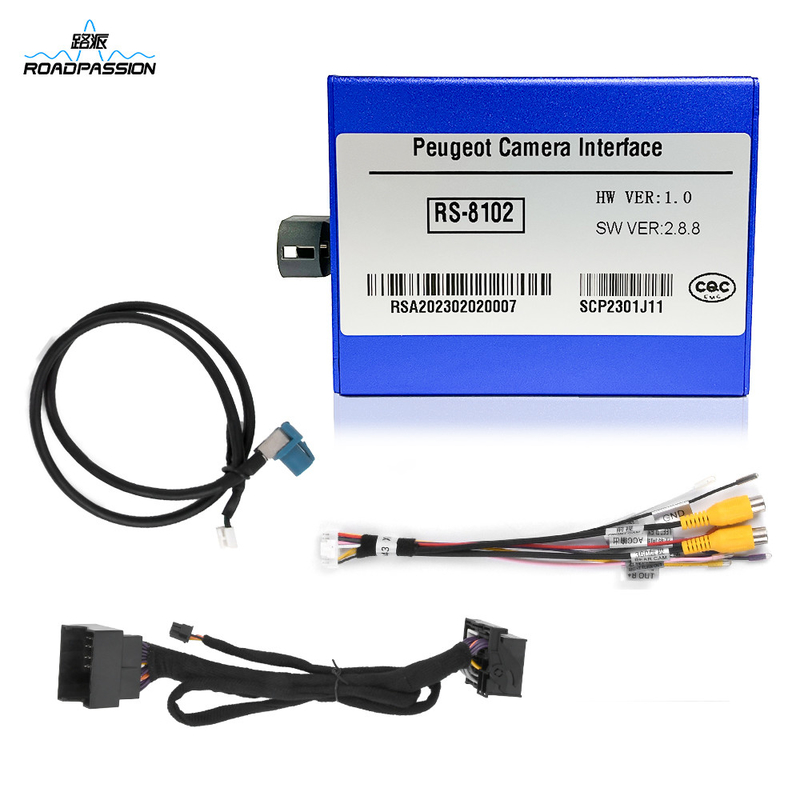

Car camera video interface package including:

Package Contents:

1 * Interface main unit

1 * LVDS cable

1 * Power cable

1 * Camera inputs harness

1 * Rear handle camera (optional)

1 * Camera extensive cable (opitonal)

1 * Camera power & GND wire

What is camera decorder video interface?

This interface allows : Camera Interface Module - Backup camera for Car RV Truck Tailgate Backup Camera Systems Wired & Wireless for rear view safety.

Camera interface is a decorder making to dedicated to fit with car factory screen, while decoders do serve the purpose of integrating IP cameras into a digital video recorder-based system, they also allow older monitors to show video footage. Which can help you to see very clearly the surrouding via front camera and rear camera.

Car camera multimedia video interface allows to connect two cameras to car's factory LCD monitor, it dedicated to design for AUDI NON MMI A4 A5 Q5 Cocert Symphony system, including the dedicated fit LVDS cable, power CANBUS cable, camera RCA connector, as well as a main unit. Everything design is for no harmness installation, just plug and play. After installation, you can see the camera view via car's factory screen to assist parking with dynamaic parking guidelines moving with the steering wheel. Which is neccessary and safe for each car.

Camera Multimedia Video Interface Parameter

Camera Multimedia Video Interface compatible car model

For Peugeot SMEG 2015-2017 (800x480 screen)

Specification

BATT/ACC range: 7V - 25V
Stand.by power drain: <5mA
Power: 0.3A@12V
Power consumption: 2.4W
Video input: 0.7V˜1V
Video input formats: NTSC
AV-video amplitude: 0.7V with 75 Ohm impedance
Working Temperature: -40°C to +85°C
Weight: 195g
Dimensions: 182 x 24 x 100 mm

Camera Multimedia Video Interface Functions
