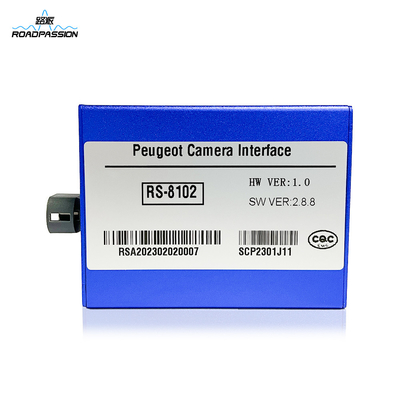

Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg

Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg
Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg
Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg

Large Image :  Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg

Product Details:
Place of Origin: China
Brand Name: RoadPassion
Certification: CE FCC Rohs
Model Number: RS-8102
Payment & Shipping Terms:
Minimum Order Quantity: 5
Price: USD 80-108
Packaging Details: Retail Box
Delivery Time: 3-5 working days
Payment Terms: T/T, Western Union, MoneyGram, PayPal
Supply Ability: 5000 sets/month

Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg

Description
Car Make: For Peugeot SMEG 2015-2017 (800x480 Screen) Advantage: Original Screen Upgraded, Special Fit Cable
Screen Size: 8inch Screen Video Pixel:: 800*480
Support: Parking Sensor Overlay Optional: DVR / External Video Input
Materials: PCBA Board Harnesss Warranty: 1 Year
Video Input: CVBS Signal
High Light:

Parking Aid Car Video Interface

,

800 x 480 Car Video Interface

,

DVR front view camera for car



Front Camera Rear View Parking Aid Dynamic Guideline for Peugeot Smeg Car Video Interface



This retrofit kit is dedicated for Peugeot Citreon SMEG system, Reverse camera interface kits offer our backup camera interfaces to add backup camera, front camera or both, and DVR video input, while with dynamic parking guidelines moving with steering wheel.





How to install with a camera video interface?

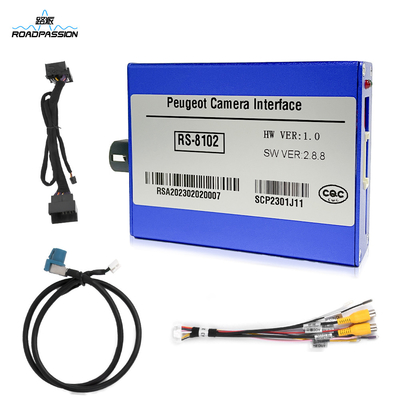

This reverse camera interface kits includes LVDS cable, canbus harness, main unit and camera RCA connector.

1. dissamble car main unit with special professional tools

2. remove the car original LVDS cable, replace with our LVDS cable, and put the original one back to our main unit box.

3. disconnect car's canbus connector, replace with our canbus connector, while put the original one back to our canbus connector

4. select the right screen resolution and car model via switches

5. connect camera and camera power to RCA connector

6. keep the main unit box well and still in near glove box

5. recover the parts and ge the car start




Car Camera Video Interface Specification

BATT/ACC range: 7V - 25V
Stand.by power drain: <5mA
Power: 0.3A@12V
Power consumption: 2.4W
Video input: 0.7V˜1V
Video input formats: NTSC
AV-video amplitude: 0.7V with 75 Ohm impedance
Working Temperature: -40°C to +85°C
Weight: 195g
Dimensions: 182 x 24 x 100 mm



Car camera video interface package including:


Package Contents:
1x Interface box
1x Power cable
1x LVDS cable
1x Manual







What is camera decorder video interface?


This interface allows : Camera Interface Module - Backup camera for Car RV Truck Tailgate Backup Camera Systems Wired & Wireless for rear view safety.

Camera interface is a decorder making to dedicated to fit with car factory screen, while decoders do serve the purpose of integrating IP cameras into a digital video recorder-based system, they also allow older monitors to show video footage. Which can help you to see very clearly the surrouding via front camera and rear camera.

Car camera multimedia video interface allows to connect two cameras to car's factory LCD monitor, it dedicated to design for AUDI NON MMI A4 A5 Q5 Cocert Symphony system, including the dedicated fit LVDS cable, power CANBUS cable, camera RCA connector, as well as a main unit. Everything design is for no harmness installation, just plug and play. After installation, you can see the camera view via car's factory screen to assist parking with dynamaic parking guidelines moving with the steering wheel. Which is neccessary and safe for each car.



Camera Multimedia Video Interface compatible car model

For Peugeot SMEG 2015-2017 (800x480 screen)


Camera Multimedia Video Interface Parameter


Operation voltage 7V – 25V
Stand-by power drain <10mA
Video input 0.7V - 1V
Video input formats NTSC
RGB-video amplitude 0.7V with 75 Ohm impedance
Temperature range -40°C to +85°C
Dimensions video-box 113×22×92 mm (W×H×D)
Dimensions CAN-box 73×22×30 mm (W×H×D)





Camera Multimedia Video Interface Functions



1. Firmware can be updated by micro SD card
2. Plug&Play interface and no harmness to any cable

3. LVDS output support 800x480, 400x24, or 1024x480 screen

4. Dynamic Parking Guidelines with original Radar-detection image
5. Front camera (DVR optional) &Rear camera inputs and auto-switch
6. Comptible Camera Format: NTSC Format
7. Overlay car's factory parking sensors
8. Support Camera input, DVR &front camera
9. Compatible with Peugeot SMEG 2015-2017 (800x480 screen)
10. Installation guide provided
11. DVR external video device ( optional)
12. Dynmaic guidelines moving with steering wheel


Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg 0Parking Aid Front View Camera For Car Video Interface For Peugeot Smeg 1
