Product Details:
|
| Car Make: | For Peugeot Citreon NAC System | Advantage: | Original Screen Upgraded, Special Fit Cable |
|---|---|---|---|
| Screen Size: | 8inch Screen | Video Pixel:: | 800*480 |
| Support: | Parking Sensor Overlay | Optional: | DVR / External Video Input |
| Materials: | PCBA Board Harnesss | Provided: | Installation Guide |
| High Light: | 800 x 480 Car Video Interface,Installation guide Car Video Interface,10mA rear view system |
||

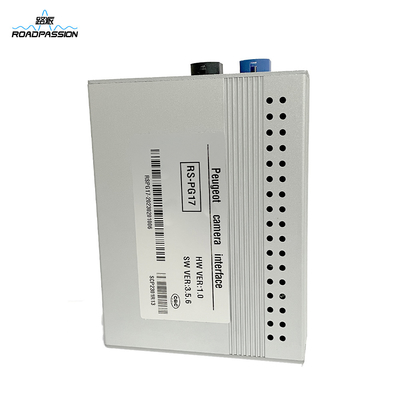

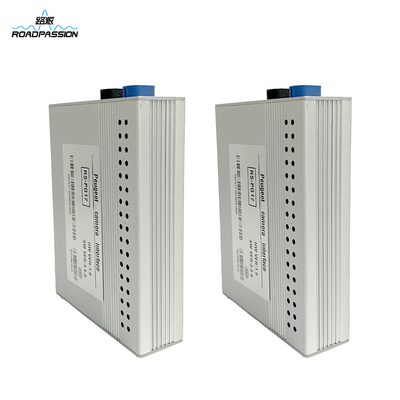

Front View Reversing Parking Assist For Citreon Peugeots NAC Rear View Car Video Interface
What is camera decorder video interface?
This interface allows : Camera Interface Module - Backup camera for Car RV Truck Tailgate Backup Camera Systems Wired & Wireless for rear view safety.
Camera interface is a decorder making to dedicated to fit with car factory screen, while decoders do serve the purpose of integrating IP cameras into a digital video recorder-based system, they also allow older monitors to show video footage. Which can help you to see very clearly the surrouding via front camera and rear camera.
Car camera multimedia video interface allows to connect two cameras to car's factory LCD monitor, it dedicated to design for AUDI NON MMI A4 A5 Q5 Cocert Symphony system, including the dedicated fit LVDS cable, power CANBUS cable, camera RCA connector, as well as a main unit. Everything design is for no harmness installation, just plug and play. After installation, you can see the camera view via car's factory screen to assist parking with dynamaic parking guidelines moving with the steering wheel. Which is neccessary and safe for each car.
Package Contents:
1 * Interface main unit
1 * LVDS cable
1 * Power cable
1 * Camera inputs harness
1 * Rear handle camera (optional)
1 * Camera extensive cable (opitonal)
1 * Camera power & GND wire
Camera Multimedia Video Interface compatible car model
For Peugeot NAC 2018-2019 (800x480 screen)
Camera Multimedia Video Interface Parameter
| Operation voltage | 7V – 25V |
| Stand-by power drain | <10mA |
| Video input | 0.7V - 1V |
| Video input formats | NTSC |
| RGB-video amplitude | 0.7V with 75 Ohm impedance |
| Temperature range | -40°C to +85°C |
| Dimensions video-box | 113×22×92 mm (W×H×D) |
| Dimensions CAN-box | 73×22×30 mm (W×H×D) |
Camera Multimedia Video Interface Functions
| 1. Firmware can be updated by micro SD card |
| 2. Plug&Play interface and no harmness to any cable |
|
3. LVDS output support 800x480, 400x24, or 1024x480 screen |
| 4. Dynamic Parking Guidelines with original Radar-detection image |
| 5. Front camera (DVR optional) &Rear camera inputs and auto-switch |
| 6. Comptible Camera Format: NTSC Format |
| 7. Overlay car's factory parking sensors |
| 8. Support Camera input, DVR &front camera |
| 9. Compatible with Peugeot NAC 2018-2019 (800x480 screen) |
| 10. Installation guide provided |
| 11. DVR external video device ( optional) |
| 12. Dynmaic guidelines moving with steering wheel |
