Product Details:
|
| Warranty: | 1 Year | Car Make: | PCM3.1 Wireless Carplay Android Auto |
|---|---|---|---|
| Screen Resolution: | 7 Inch Screen | Video Ouput: | HDMI |
| Parking Guidelines: | Supported | Camera Format: | NTSC |
| Front Camera: | Yes | Rear Camera: | Yes |
| High Light: | wired Wireless Carplay Interface,HDMI Wireless Carplay Interface,300mA interface apple carplay |
||
For Poshce Panamera PCM3.1 Cayman Reverse Camera Decorder Wired Wireless CarPlay Interface
Functions of Wireless CarPlay Interface
The first connection method of wireless AUTO
1. Enter the installation setting interface, enter the wireless Android Auto setting, click pairing, and the CX-BT will pop up.
2. Connect CX_Bt... with the Bluetooth of Android mobile phone. After successful pairing, it will enter the AUTO interface.
3. Enter this interface, the wireless AUTO is successfully connected.
*Wireless AUTO easy connection method for the first time: After connecting via USB cable, follow the prompts on the mobile phone to connect to AUTO, unplug the data cable after 15 seconds, and the wireless will automatically connect.
The first connection method of wireless CarPlay is as follows (manual method)
1. Enter the installation settings, wireless CarPlay settings, click "discover and connect devices" and pop up CX_BT
2. Turn on the bluetooth of the Apple mobile phone, search for the name of CX_BT..... as shown in the above picture, click to connect and pair, and then click to use CarPlay
3. Enter this interface, and the wireless CarPlay is successfully connected.
Remarks: (Apple needs to complete the Bluetooth pairing, and the wireless CarPlay connection can be completed when the WIFI on the mobile phone is turned on), and the car that has already been connected will automatically connect next time you start the car.
*Simple connection method of wireless CarPlay for the first time: After connecting via USB cable, follow the prompts on the mobile phone to enable wireless CarPlay, unplug the data cable after 15 seconds, and the wireless will automatically connect.
| Vehicle Model | Screen Size |
| Cayenne | 10-16 |
| Panamera | 10-16 |
| Cayman | 10-16 |
| 911 | 10-16 |
| 978 | 10-16 |
| Macan | 10-16 |
Camera Interface Parameter
|
running voltage : 9-16v, 14.4 v ( rated) |
storage temperature : -30 - 85°C |
| operating temperature : -30 + 75 °C | ambient humidity : ≤98% (at 45°C), 65 + 5% (rated) |
| quiescent current : less than 3mA | shutdown current : 300mA (clock is on) |
| ≤ 1.5A, when the USB charging current is ≥ 3A, the host computer of the radio and receiver start the circuit protection function to control the current below 1.5A to avoid burning the product. | |
Wireless Carplay Kit Includes
1 x mian board
1 x wifi antenna
1 x FPC
1 x VGA cable
1 x Power cable
1 x Power connector
1 x Mic

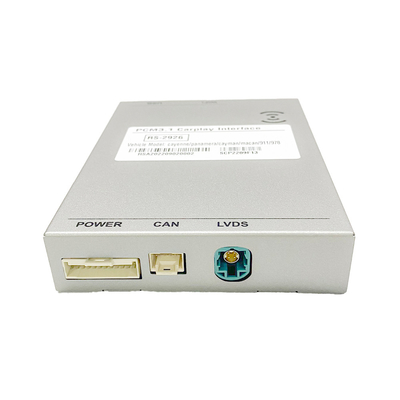

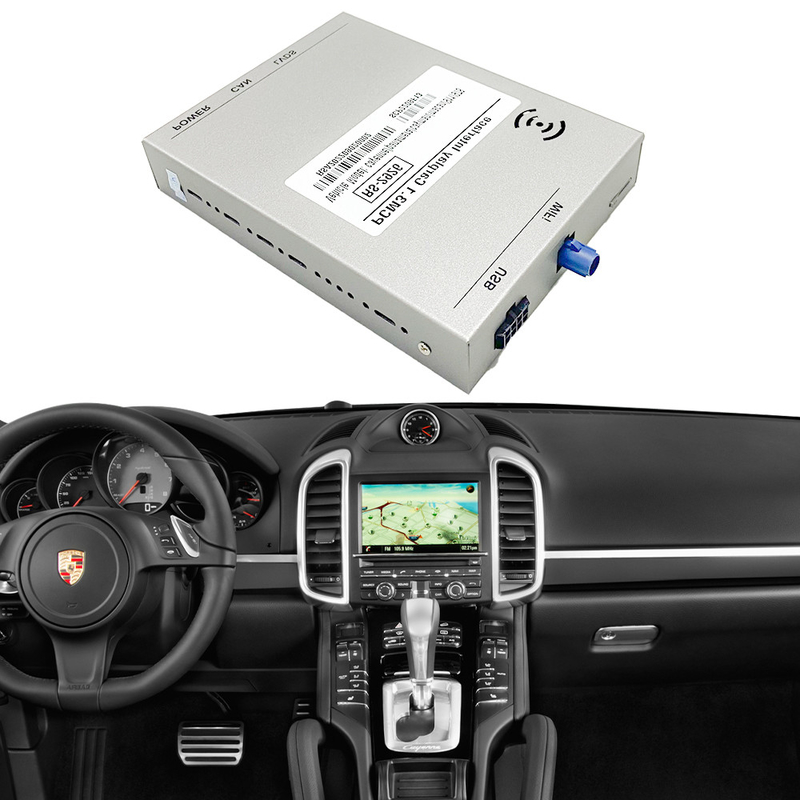

Wireless CarPlay Kit Picture
Packing & Shipping
Shipping is via express, sea, flights, with retails package as belows:
