Product Details:
|
| Type: | Reverse Camera | Power: | 12V |
|---|---|---|---|
| View Angle: | 170° | Image Sensor:: | 1/3" Chip |
| Video Output: | 1.0Vp-p, 75Ohm, RCA Male | Min. Illumination: | 0.01 Lux |
| Car Fitment: | Mercedes-Benz | Resolution: | 800*480 400*240 |

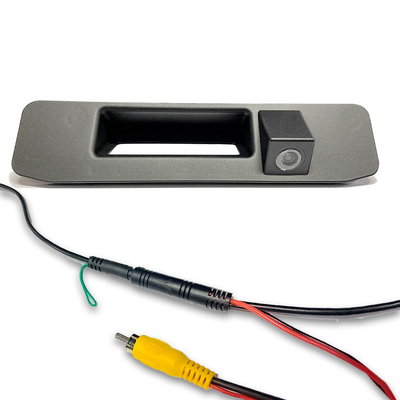

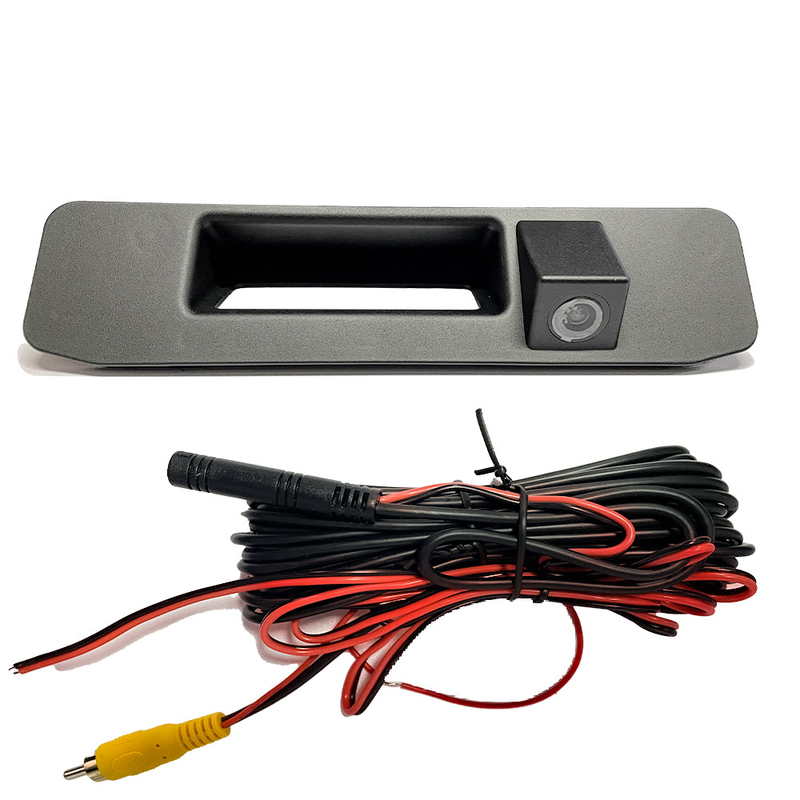

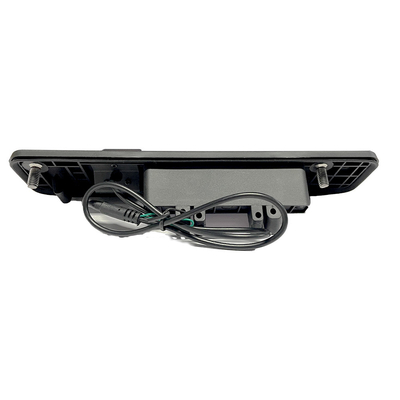

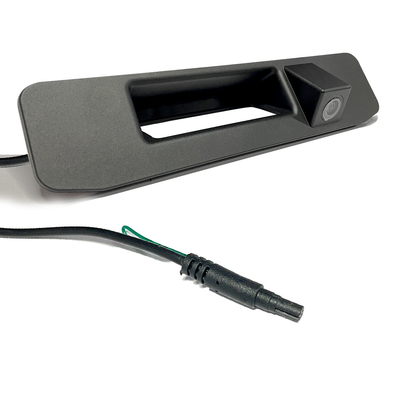

Parking Assistant CVBS Rear Camera For Benz Car Reverse Camera Interface
Product Description
Parameter:
1.Chip: HD CCD
2.TV system:NTSC60HZ
3.Effective pixels:648*488 Pixels
4.Sensing area:5.961 x 4.276mm
5.Horizontal resolution: 480TVL
6.Shutter speed: 1/60-20us Camera*1
7.Minimum illumination: 0.2Lux/ F1.8=1.2 (0 Lux with Led)
8.White balance: Auto Power cable*1
9.Waterproof: IP67
10.Video output: 1.0Vp-p, 75ohm
11.Current Consumption: Not More than 150mA
12.View Angle : 90-120 Degree
13.Power supply: DC 9-12V
14.Operating Temperature: -20°C~ 70°C, RH95% Max.
15.Storage Temperature: -30°C ~ 85°C, RH95% Max.
16.Horizontal synchronization frequency:15625KHZ
17.SNR:>48dB
18. Power : Approx 7W
19.Size : 22*22*22mm
Description
| Model | CAM-4004 |
| Type | Reverse Camera |
| Brand | Roadpassion |
| Plug and play | Yes |
| Included | Unit + Connector |
| Made for | For Mercedes Benz |
| View Angle | 170° |
| Image sensor | 1/3" Chip |
| Min. illumination | 0.01 Lux |
| Resolution | 800*480 400*240 |
